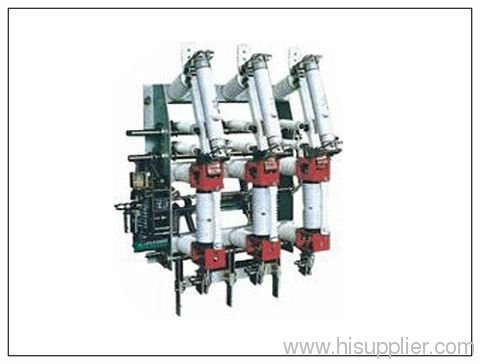

FZ(R)N21-12D AC high voltage vacuum load breaking switch

Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: as required

Brand Name: feite

Production Capacity: 100sets/month

Delivery Date: 7-15 days

Mechanical Life: 30000times

FZ(R)N21-12D AC high voltage vacuum load breaking switch
1.excellent breaking ability
2.small size
3.long electric life

FZ(R)N21-12D AC high voltage vacuum load breaking switch

FZN21-12D/T630-20 series three poles alternating current vacuum load break switch-fuse protector combination. It has merit of excellent breaking ability, small size, long electric life, free of maintenance, can break rated current, overload current (FZN21-12D/T125-31.5 can break short circuit current) and prevent device from phase-default operation. The switch has an obvious visible isolate fracture to assemble earth switch and electric spring mechanism, thus can conduct remote control.

Ambient condition

1 Ambient temperature: max +40°C min -15°C(conveyance under -30°C is allowed)

2 Altitude: ≤1000m

3 Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%; daily average saturated vapor pressure ≤2.2*10^-3 MPa; monthly average value ≤1.8*10^-3 MPa

4 Earthquake intensity: ≤8 degree

5 The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution

Order instruction
Complete model and order quantity of the product
Rated current, rated voltage, rated voltage of operation mechanism
Need panel, earth switch, fuse protector or not, what is the rated current and quantity of fuse protector
Required accessory and quantity
Other requirement please contact with us directly

Main technical data

Main Technical Data
Type		FZN21-12D/T630-20	FZN21-12D/T125-31.5
Rated voltage	kv	12
Rated current	A	630	1250
Rated short-time power frequency withstand voltage(1 min)	kv	Fructure of vacuum interrupter 30
Rated short-time power frequency withstand voltage (valid)	kv	Interphase or to ground 42,fructure 48
Rated lighting impulse withstand voltage	kv	Interphase or to ground 75,fructure 85
Rated dynamic stability current (peak)	kA	50
4S thermostability current	kA	20
Rated breaking current of active load	A	630
Rated breaking current of close loop	A	630
Rated breaking current of cable charging current	kA	10
Rated capacitor volume of breaking non-load	kv	3150
Rated breaking joint current	v		1250
Output of energy of collider			2~5
Interruption of rated current	times	1000
Rated short circuit making current	kA	50
Rated dynamic stability current of earth switch	kA	50
2S dynamic stability current of earth switch	kA	20
Rated voltage of assist circuit	v	AC,DC220 AC,DC110
Mechanical life	times	10000
Contact erosion limit of vacuum interrupter	mm	2
Manual operation moment of force	Nm	>200
