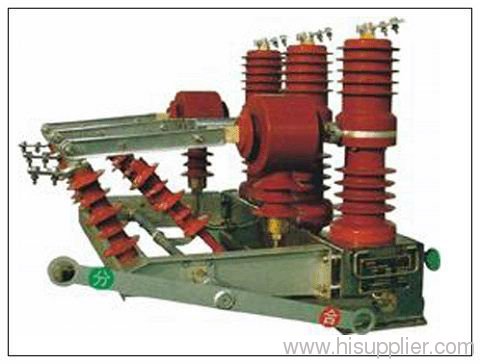

High reliable ZW32M-12 permanent magnetic outdoor high voltage vacuum circuit breaker

ZW32M-12 outdoor three-poles high voltage permanent magnetic mechanism are mainly opening and closing loading current, overload current and circuit breaking current in power system. They are appropriate in protecting and controlling power system in mining industrial enterprise, also in rural grid and frequent operation places. This kind of product not only conserved all the reasonable part and excellent characteristics of type ZW32, but also make the largely enhanced mechanical life of the whole device including vacuum interrupter, reaching 50000 times. Free of maintenance within 20000 times during operation.

Ambient temperature:

max +40°C min -15°C(conveyance under -30°C is allowed)

2 Altitude: ≤1000m

3 Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%; daily average saturated vapor pressure ≤2.2*10^-3 MPa; monthly average value ≤1.8*10^-3 MPa

4 Earthquake intensity: ≤8 degree

5 The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution

Order instruction

Complete model and order quantity of the product

Rated current, rated voltage, distance of each poles

Rated short circuit breaking current, operation voltage

Required accessory and quantity

Other requirement please contact with us directly

Main Technical Data
Rated voltage	kv	12
Rated frequence	Hz	50
Rated lighting impulse withstand voltage	kv	75
Rated short-time power frequency withstand voltage(dry)	kv	42
Rated short-time power frequency withstand voltage(humid)	kv	30
Rated current	A	630/1250
Rated short-circuit breaking current	kA	20
Rated short-circuit making current	kA	50
Short time withstand current (4S)	kA	20
Rated peak withstand current	kA	50
Rated operations of short-circuit breaking current interruption	times	30
Power frequency withstand voltage of secondary circuit(1 min)	v	2000
Mechanical life	times	50000

Mechanical characteristics adjustment data
Rated contact stroke	mm	9±1
Contact overtravel	mm	2±0.5
Average opening speed	m/s	1.2±0.3
Average closing speed	m/s	0.6±0.2
Contact bouncing duration at closing operation	ms	≤3
Bounce duration of contact closing	ms	≤2
Core distance between phases	mm	340±1.5
Three-pole simultaneity	ms	≤2
Condactive circuit resistance of each phases	μΩ	<80
Closing time	ms	20~40
Opening time	ms	30~60
